New launched Vident iBT200 is a hand-held 9V-36V battery tester & analyzer to do battery test, cranking test and charging test, ripple test etc.
Here we go for procedure:

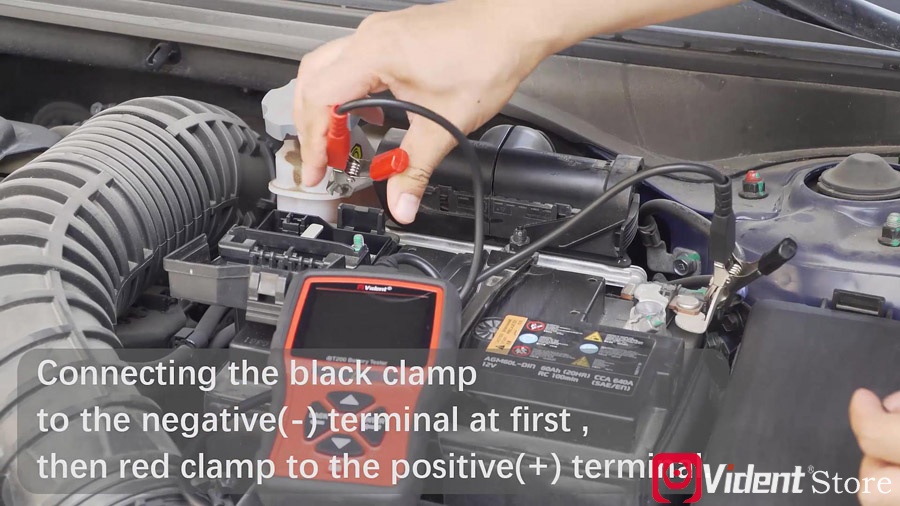

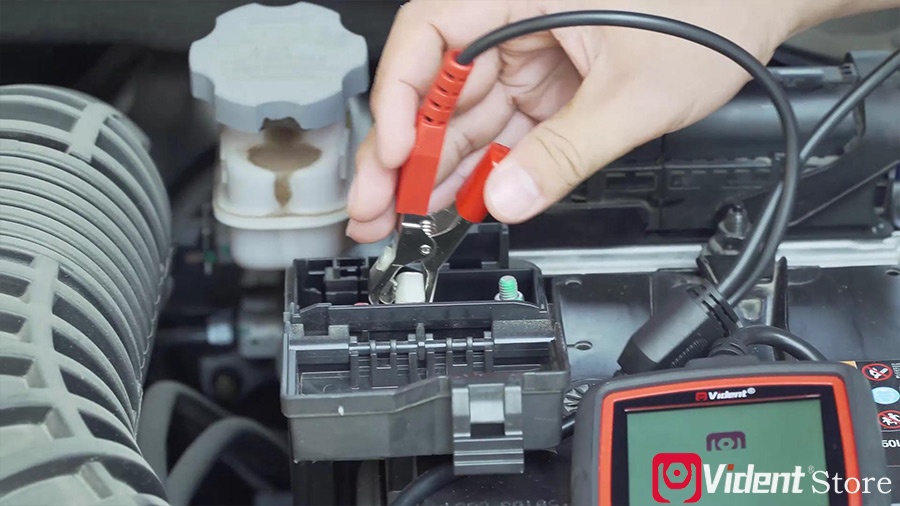

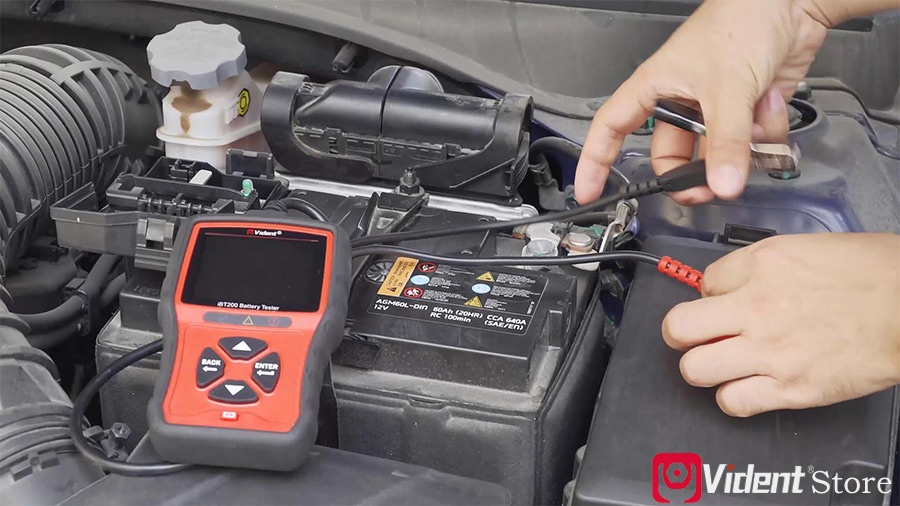

The red clip is connected to the positive and the black clip to the negative.

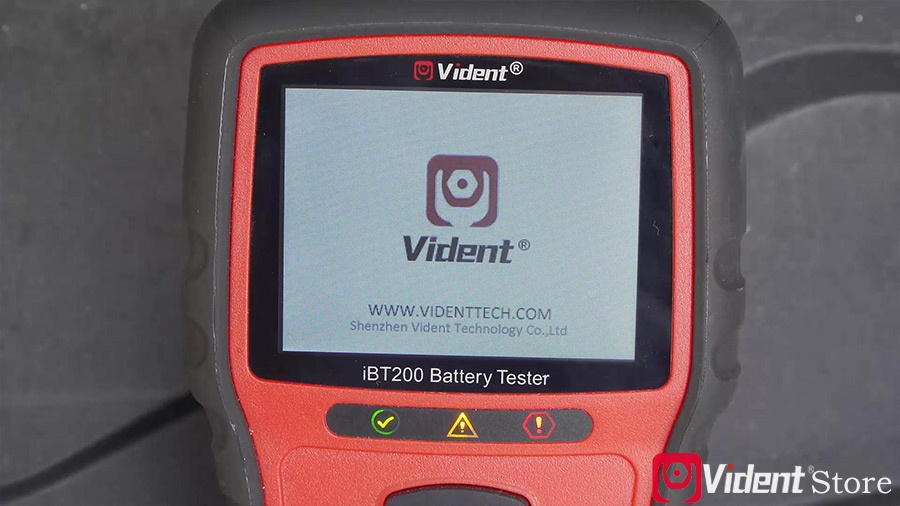

Vident iBt200 battery tester is launching.

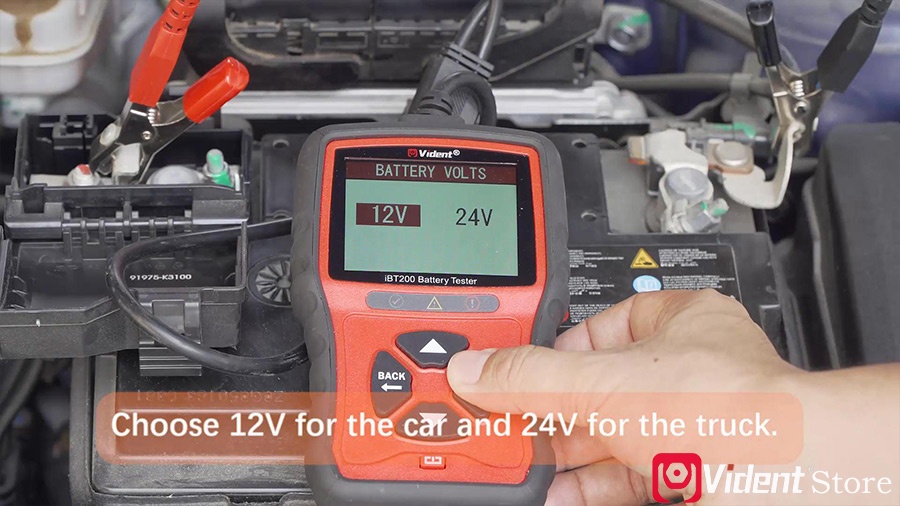

Choose 12V for the car and 24v for the truck.

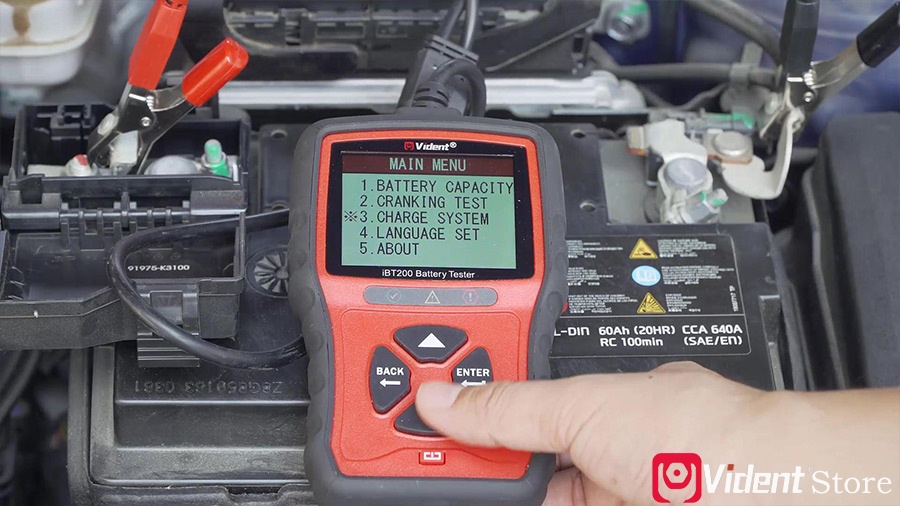

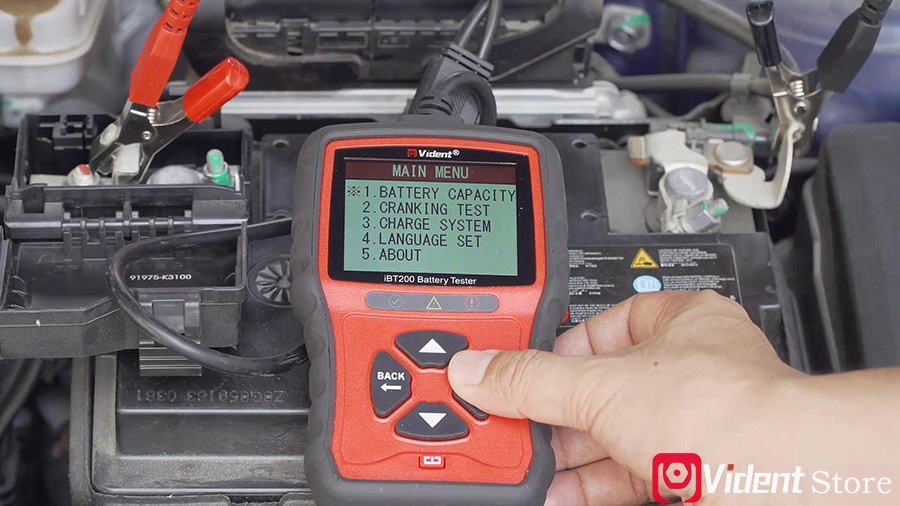

Enter main menu, have option: battery capacity, cranking test, charge system, language set, about. Let’s enter “Battery capacity”.
Battery type “VRLA / GEL /AGM/SLA”.

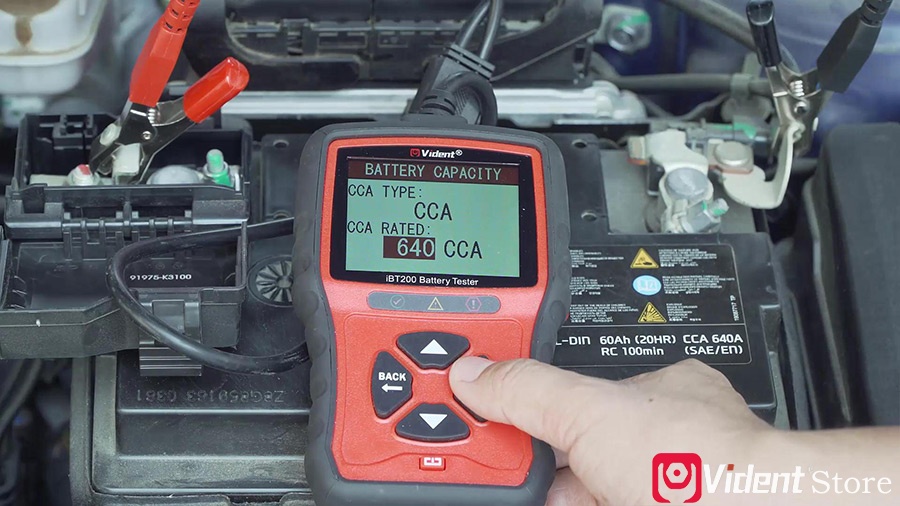

Please select the correct test standard for debugging.

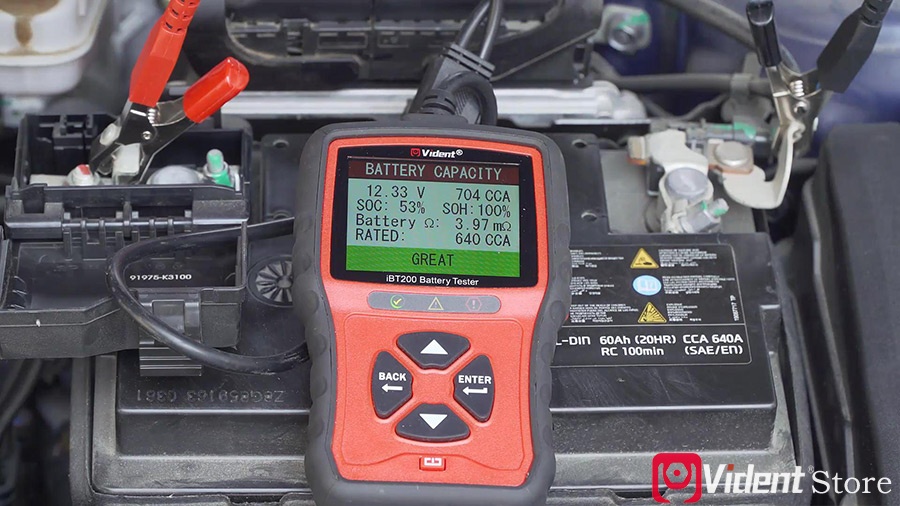

Have the test results. It’s great.

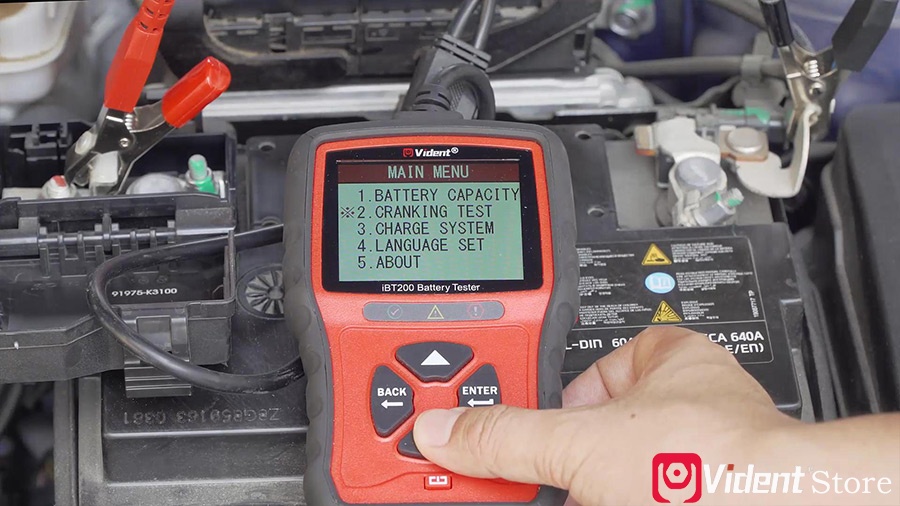

Next is cranking test.

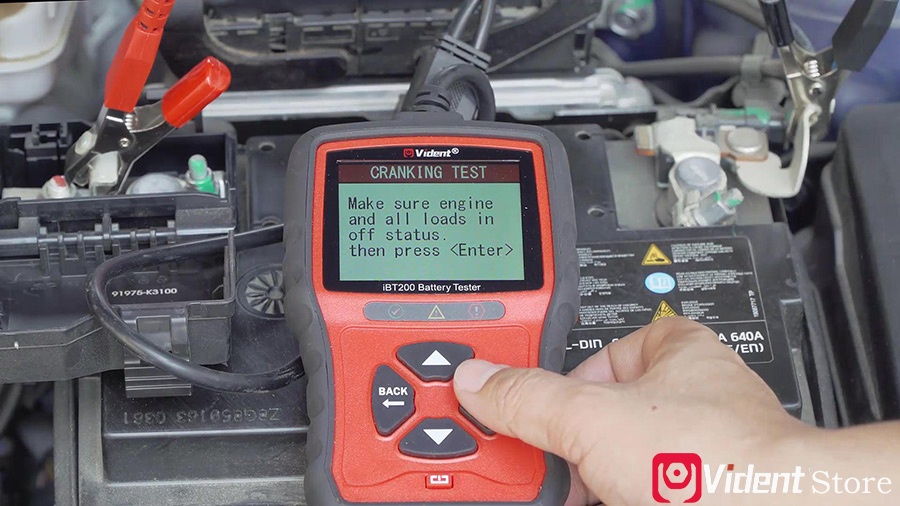

Make sure engine and all loads in off status then press [Enter].

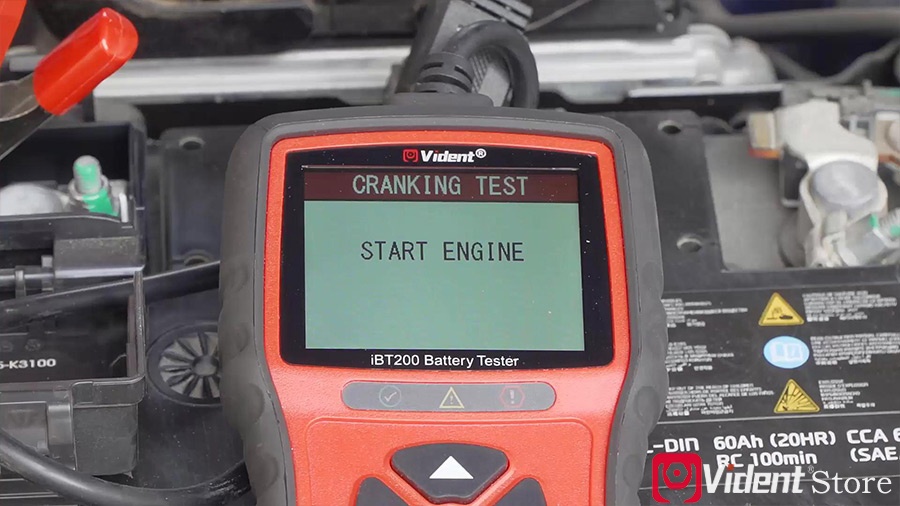

To start engine.

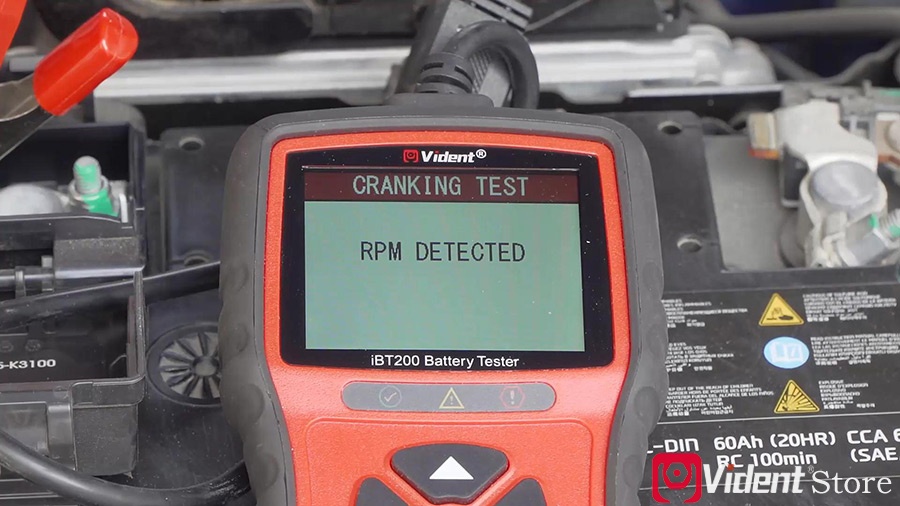

RPM detected.

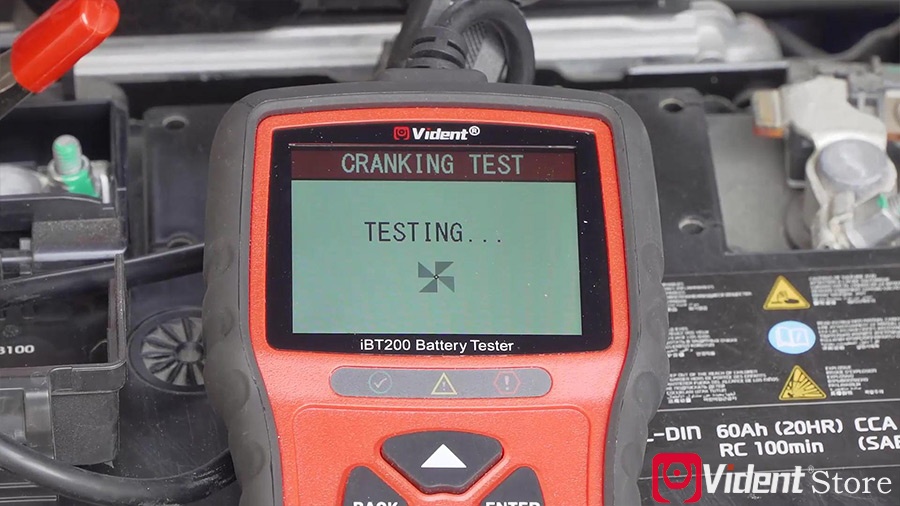

Testing…

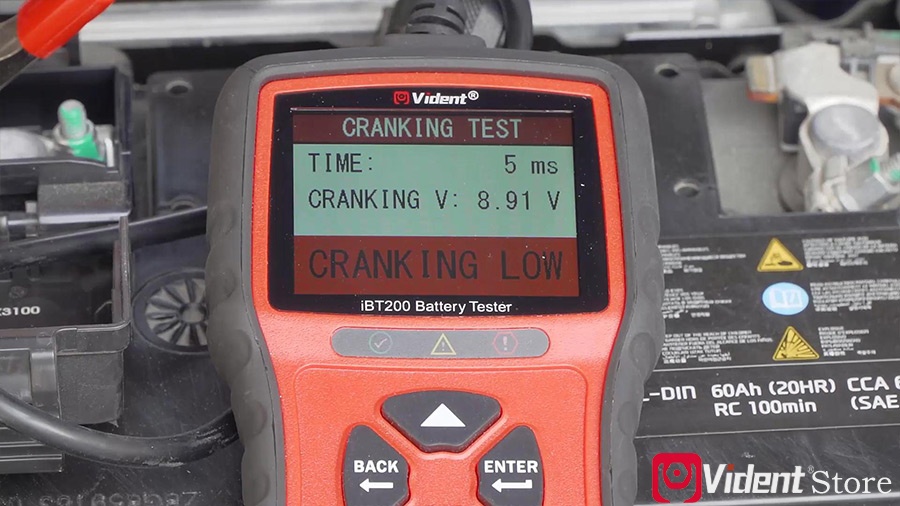

Time: 5 ms
Cranking V: 8.91V.
Cranking Low.
Next is to test “Charge system”.

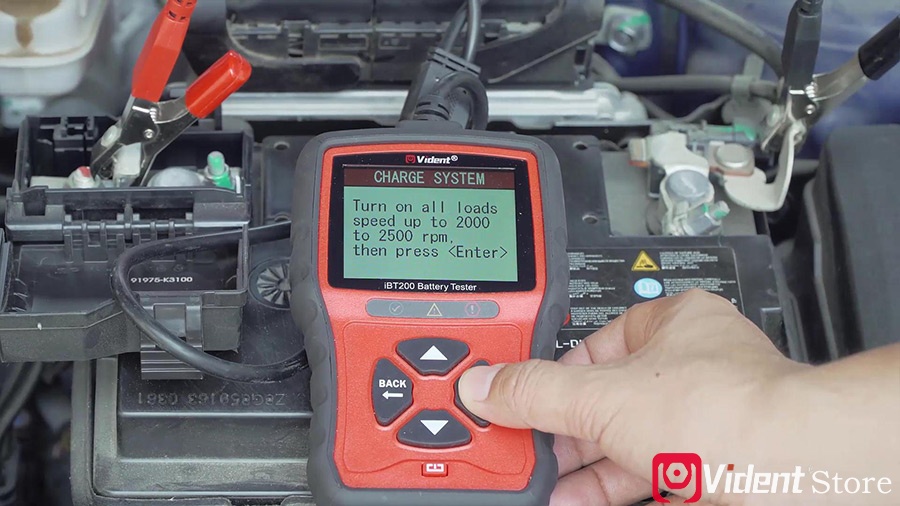

Turn on all loads speed up to 2000 to 2500rpm, then press [Enter].

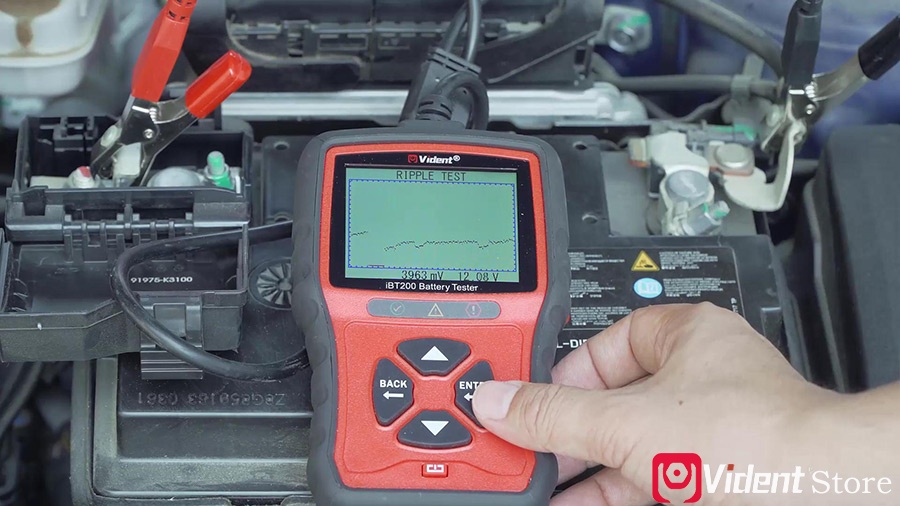

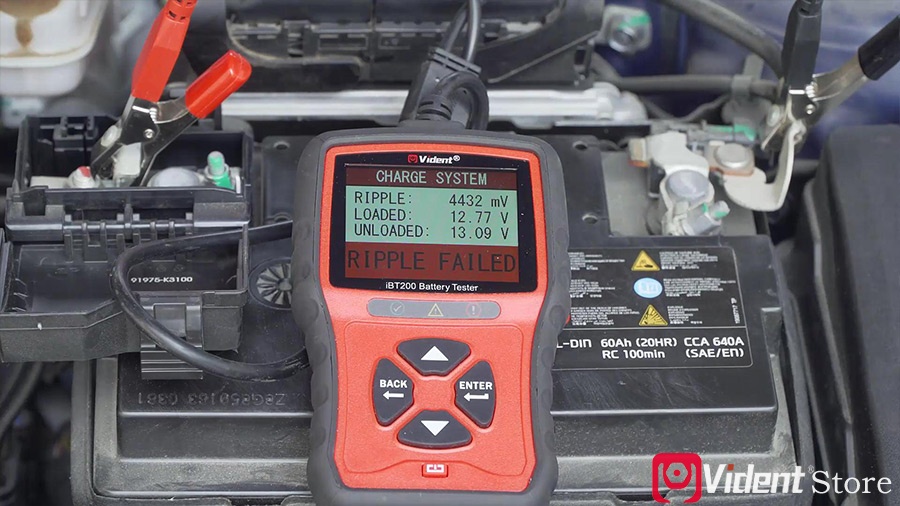

Ripple failed.
Next is to set the language.
Vident iBT200 battery tester language available: English, German, Italian, French, Spanish, Portuguese, Hungarian, Polish, Slovak, Czech, Russian, Dutch, Swedish, Japanese
